BRZ 86 FRS Power Steering Emulator

NEW VERSION JUST ARRIVED. WE HAVE A LIMITED INITIAL BATCH WITH SOME OF THESE ALREADY ALLOCATED TO EXISTING SALES. MORE TO ARRIVE END OF JULY.

The AGT Engineering “Steering Emulator Mico-BRZ Steering Emulator” allows the use of the BRZ/GT86/FRS electric power steering column in certain conversions, in a stand alone environment, or to get rid of the wheel speed dependant assist level in race/drift car applications.

This new "Micro version" is based off our previous version which has been popular worldwide for over 5 years. The new version is in a new enclosure with a few added features (optional screen) and now comes with a wiring harness.

The main signals the emulator emulates is Engine Speed (RPM), and Vehicle Speed.

There are four different versions.

Version1: Variable assist via external speed pulse input (either trasnmission speed sensor or via ABS pulsed output) - This is for stand alone type road applications in a different chassis
Version2:  Manual adjustable assist via the on-board potentiometer knob. For stand alone or Race/Drift car applications where the amount off assist to be fixed, regardless of vehicle speed, with a set and forget type of installation.
Version3:  Manual adjustable assit via remote control (dimmer control knob which can be installed next to the existing dimmer on the BRZ/GT86/FRS. This is suited to Race/Drift car applications and allows the driver easy adjustment on the level of power assist by a variable knob that installs next to the dash dimmer (illumination) dial. The new dial clips into the dash next to the illumination dial and looks like a standard factory dial for that OEM look.
Version4:  Manual adjustable assit via remote potentiometer and control knob. This is suited to Race/Drift car applications and allows the driver easy adjustment on the level of power assist by a variable knob mounted on the dash or within reach. Suitable for non BRZ/86 vehicles or vehicles with the dash removed, where the OEM control style of version3 will not work.

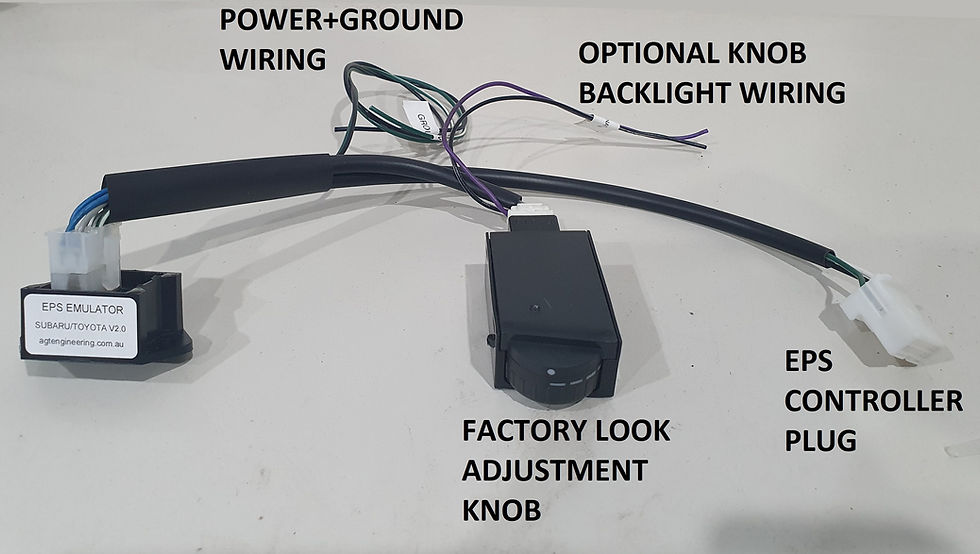

The emulators now come with an Emulator to EPS harness and in most cases just need the ignition and ground wires connected by the installer to function.

Each version can now be optioned with a clip on OLED screen for diasgnostics and monitoring

Please download and read the manul for a more detailed description and installation instructions.

MANUAL

For the old version, you can still access the information and documentation via THIS LINK.
